ATF Counter-flow diagram: SUMMER position
Click on image to view larger image

Photo Details
svxcess



Super Moderator

Registered: February 2001
Location: Westminster, MD
Posts: 6,748
users gallery

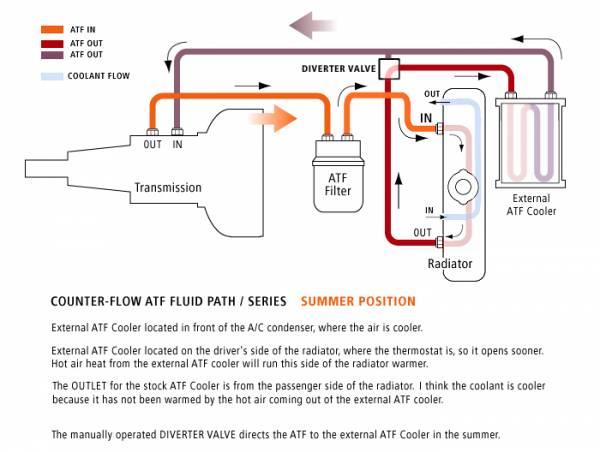

Using a manually-operated diverter valve to control the flow of ATF (Series configuration)
·
Additional Info
Keywords: ATF Counter-flow diagram: SUMMER position
