#1
|
||||
|
||||
The sales brochure
Our new friend Kristen not only has the 6 service manuals, he also got the original sales brochure. I will try to scan it tomorrow and post it here.
Meanwhile, this 91/92 brochure makes interesting statements: * VTD-4WD has 35/65 front rear distribution * ABS and VTD are interconnected through "the computer": 'Each wheel is equippmed with its own speed sensor and control valve [4 channel ABS]. The data obtained from each wheel is processed by the computer, which then issues independent control instructions for the front, and rear wheels simultaneously. At the same time, control is exercised over the E-4AT and VTD-4WD systems. When the ABS is activated, torque is distributed to maintain an optimum balance between the front and rear wheels, ensuring running stability even in low "mu" conditions such as ice covered road.' I will post my scan as soon as possible. The available colours in 1992 were: 249 Silver Metallic 222 Dark Grey Metallic 235 Black Mica 947 Mica Ruby 265 Dark Red Mica 267 White Mica
__________________
I got my girl, I got my glass, I got my car and I'm ready to f... |
#2
|
|||
|
|||
Re: The sales brochure
Quote:
![]() * VTD-4WD has 36/64 front rear distribution * ABS are interconnected through "the ABS computer": 'Each wheel is equippmed with its own speed sensor and control valve [4 channel ABS]. The data obtained from each wheel is processed by the ABS computer, which then issues independent braking control instructions for the front, and rear wheels simultaneously. At the same time, control is exercised over the E-4AT and VTD-4WD systems. When the ABS is activated, the gearbox changes back to 3rd gear, torque is distributed to maintain an optimum balance between the front and rear wheels, ensuring running stability even in low "mu" conditions such as ice covered road.' Harvey.
__________________
One Arm Bloke. Tell it like it is! 95 Lsi. Bordeaux Pearl, Aust. RHD.149,000Kls Subaru BBS wheels. 97 Liberty GX Auto sedan. 320,000Kls. 04 Liberty 30R Auto Premium. 92.000kls. |
#3
|
||||
|
||||
Re: The sales brochure
Just quoting the brochure, Harvey. It says 35/65 everywhere.
Then again, it was written by marketing people ![]()
__________________
I got my girl, I got my glass, I got my car and I'm ready to f... |
#4
|
|||
|
|||
Re: The sales brochure
Quote:
![]() That is the problem when 'marketing people' talk about technical data, that they have no knowledge of. Harvey.
__________________
One Arm Bloke. Tell it like it is! 95 Lsi. Bordeaux Pearl, Aust. RHD.149,000Kls Subaru BBS wheels. 97 Liberty GX Auto sedan. 320,000Kls. 04 Liberty 30R Auto Premium. 92.000kls. |
#5
|
||||
|
||||
Re: The sales brochure
What does the "mica" mean on the paint colors?
__________________
1994 Subaru SVX LSI |
#6
|
||||
|
||||
Re: The sales brochure
It is the best looking dark red on an SVX.
Not available in the US, if memory serves right, only in Europe (Switzerland and Germany). Search the forum, I am sure you will find few pictures of the Mica SVX.
__________________
Danny 1994 Silver SVX in hybernation, awaiting for the monsterous awakening (Lebanon) ![]() 1967 Mercedes-Benz 250SL Euro Specs, Hard/Softtop, White/Red. Under Complete Restoration ![]() 2013 Mercedes-Benz SL350 Euro Specs, White/Red. Mint... Another step into SL Collection. ![]() |
#7
|
||||
|
||||
Re: The sales brochure
"mica" is the termed used abroad instead of "metallic"

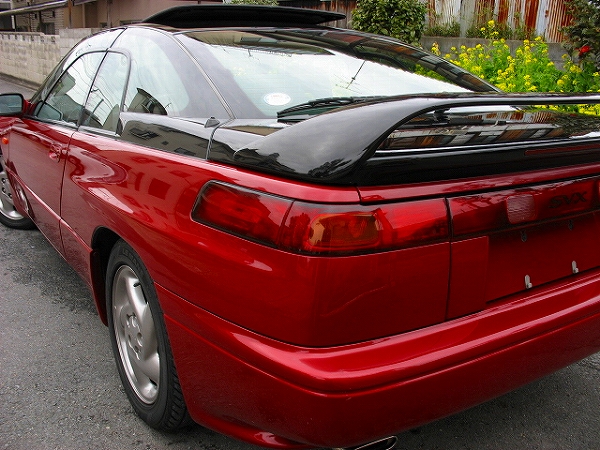

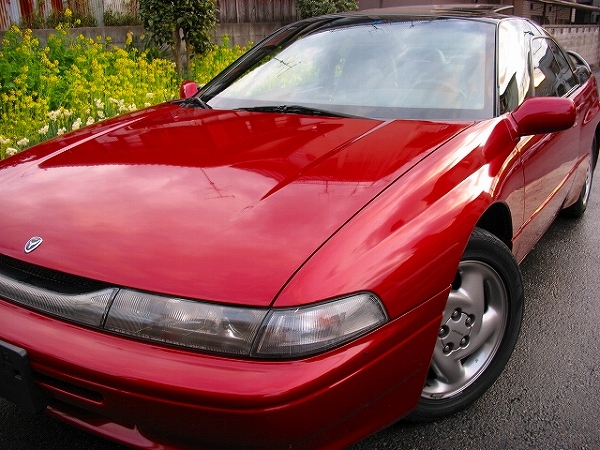

Color 265 is known in the US as Claret (1992 only) other countries used Crimson Mica and dark Red Mica for the same color. Color 247, known as Swiss Ruby Mica, is also called Red Mica. This is truly a beautiful color, more of a pearl than a metallic. ![]() ![]() .
__________________
. Subaru Ambassador 1996 Polo Green LSi #216..138,100 miles...SOLD JFICX8659TH100216.....Date of Manufacture: November 16, 1995..... Fuji Heavy Industries..Ōta North Plant....Ōta City,. Gunma Prefecture, Japan In-Service Date: January 2, 1997 "The Pristine Green Polo Machine” First Polo Green on the Network First Clear front turn signals, JDM Alcyone hood emblem, rear panel, and BOXER engine cover on the Network (US) (2000) First 5000K HID factory fog lights (2007) First SVX JDM BBS wheels on a USDM SVX (2013) HID lighting (5000K) for headlight and H3 fog lights, PIAA SuperExtreme 120W high beams, rebuilt EG33 longblock, Cometic head gaskets, Phase II flexplate, AMR aluminum radiator with custom silicone hoses, 160A high-output alternator in aluminum-ceramic coated case, new design alternator wiring upgrade v.4, rare factory headlight protectors, refinished JDM BBS mesh aluminum wheels and custom, polished billet aluminum new hex center caps, LED grille mod, R1 Concepts high-carbon cryo slotted rotors, Akebono ceramic pads, Goodridge S/S braided brake lines, Smallcar Stage 1 shift kit, ThermalTech aluminum/ceramic-coated valve covers, Energy Suspension urethane front & rear swaybar bushings, Bontrager22 rear swaybar with QS Components Chromoly Teflon/Kevlar endlinks, "$15.00/5 minute" suspension mod. Hella Supertone horns, Custom stainless steel exhaust system with 2" headpipes, Magnaflow cats, AeroTurbine AR25 resonator /AWD "Bullet" muffler. R.I.P. 2010 Subaru Outback Limited 2.5 CVT...338,000 miles. Totaled by a 1,300 lb. COW March 4, 2016 ![]() 2014 Hyundai Avante Limited ... 203,000 miles. Actually quieter and smoother than the Outback ![]() 2007 Mazda Miata MX-5 PRHT...102,000 miles. Plenty of parts, service and windshields. ![]() 4th Registered Network member —2/21/2001 My NEW locker..I...My Email..I..Wikipedia/SVX . . |
#8
|
||||
|
||||
Re: The sales brochure
Mica is pearl. Metallic is metallic.
Evidently, they offered Suby Mica here too.
__________________
I got my girl, I got my glass, I got my car and I'm ready to f... |
#9
|
||||
|
||||
Re: The sales brochure
Took me a short while to realize I was looking at several Claret SVXs.
I think the wheels on the last picture are very complimentary and bring the car up to date. The original body design is of course, timeless...
__________________
1997 Ebony Black Pearl LSi, 80k miles (129k kilometers), JDM clear corners. 1994 Laguna Blue Pearl LSi, 149k miles (249k kilometers), blown tranny, likely using bits and selling as donor transplant project. 2006 Newport Blue Outback XT Ltd 117k kilometers, lowered 2.25" on OEM Legacy GT suspension. 1994 Emerald Pearl LSi w 2006 WRX 5 spd manual. 1997 Laguna Blue LSi, 46k miles (73345 Kms). One owner 25 years, always garaged, pampered and 9/10 showroom condition. Possibly the last Canadian spec Laguna ordered #100134 |
#10
|
||||
|
||||
Re: The sales brochure
Quote:
![]() ![]() .
__________________
. Subaru Ambassador 1996 Polo Green LSi #216..138,100 miles...SOLD JFICX8659TH100216.....Date of Manufacture: November 16, 1995..... Fuji Heavy Industries..Ōta North Plant....Ōta City,. Gunma Prefecture, Japan In-Service Date: January 2, 1997 "The Pristine Green Polo Machine” First Polo Green on the Network First Clear front turn signals, JDM Alcyone hood emblem, rear panel, and BOXER engine cover on the Network (US) (2000) First 5000K HID factory fog lights (2007) First SVX JDM BBS wheels on a USDM SVX (2013) HID lighting (5000K) for headlight and H3 fog lights, PIAA SuperExtreme 120W high beams, rebuilt EG33 longblock, Cometic head gaskets, Phase II flexplate, AMR aluminum radiator with custom silicone hoses, 160A high-output alternator in aluminum-ceramic coated case, new design alternator wiring upgrade v.4, rare factory headlight protectors, refinished JDM BBS mesh aluminum wheels and custom, polished billet aluminum new hex center caps, LED grille mod, R1 Concepts high-carbon cryo slotted rotors, Akebono ceramic pads, Goodridge S/S braided brake lines, Smallcar Stage 1 shift kit, ThermalTech aluminum/ceramic-coated valve covers, Energy Suspension urethane front & rear swaybar bushings, Bontrager22 rear swaybar with QS Components Chromoly Teflon/Kevlar endlinks, "$15.00/5 minute" suspension mod. Hella Supertone horns, Custom stainless steel exhaust system with 2" headpipes, Magnaflow cats, AeroTurbine AR25 resonator /AWD "Bullet" muffler. R.I.P. 2010 Subaru Outback Limited 2.5 CVT...338,000 miles. Totaled by a 1,300 lb. COW March 4, 2016 ![]() 2014 Hyundai Avante Limited ... 203,000 miles. Actually quieter and smoother than the Outback ![]() 2007 Mazda Miata MX-5 PRHT...102,000 miles. Plenty of parts, service and windshields. ![]() 4th Registered Network member —2/21/2001 My NEW locker..I...My Email..I..Wikipedia/SVX . . |
#11
|
|||
|
|||
Re: The sales brochure
My ex had an '89 "ruby mica" GL 5-door, so that description was used in the U.S. in some instances. And yes, it was a beautiful color.
dcb |
#12
|
||||
|
||||
Re: The sales brochure
I have a Ruby Mica Outback for sale right now. Sharp color.
__________________
2009 Volvo C70 T5 2008 Volvo S80 V8 2006 Range Rover Sport 2001 Audi S8 |
#13
|
||||
|
||||
Re: The sales brochure
Say Jetboy. Any chance we're going to see this Sales Brochure scan in the near future? No anxiety but please don't think there is no interest out here.
The SVX is such a remarkable vehicle that any paper ephemera is desirable.
__________________
1997 Ebony Black Pearl LSi, 80k miles (129k kilometers), JDM clear corners. 1994 Laguna Blue Pearl LSi, 149k miles (249k kilometers), blown tranny, likely using bits and selling as donor transplant project. 2006 Newport Blue Outback XT Ltd 117k kilometers, lowered 2.25" on OEM Legacy GT suspension. 1994 Emerald Pearl LSi w 2006 WRX 5 spd manual. 1997 Laguna Blue LSi, 46k miles (73345 Kms). One owner 25 years, always garaged, pampered and 9/10 showroom condition. Possibly the last Canadian spec Laguna ordered #100134 |
#14
|
||||
|
||||
Re: The sales brochure
Quote:
I'll scan it tomorrow and see how it turns out.
__________________
1992 Dark Teal LS-L w/ 165k+ miles (traded ![]() Mods: Power Slot front rotors, polyurethane sway bar bushings, window scratcher fix, SPD hood struts, Outlaw Engineering phenolic spacers, Bontrager Works 22mm rear sway bar, R-134a conversion, 93 Legacy SS 5 speed swap, Ceika coilovers, ARP head studs ![]() 2001 Black Toyota Sequoia (hauler/daily) 1992 Blue Toyota Cressida (drift car) 1992 Red Toyota MR2 (weekend/track day car) |
#15
|
||||
|
||||
Re: The sales brochure
Sorry for the delay, I've been working full days, picking up kids, was ill etc..
Hopefully I get to do it today.
