Rear Deck Blower
as "Ewie" was interested in the fact that my SVX had a "blower" attached - these photos I sent to Zavikan about 3 month ago to do a write-up ......

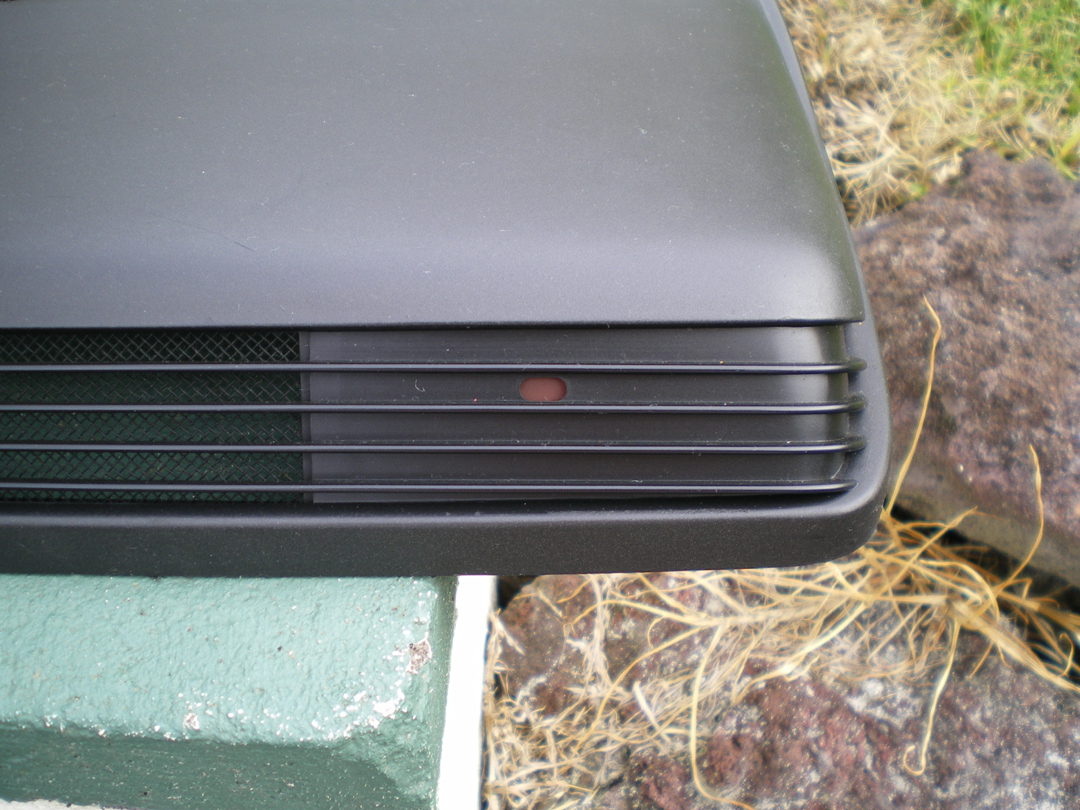

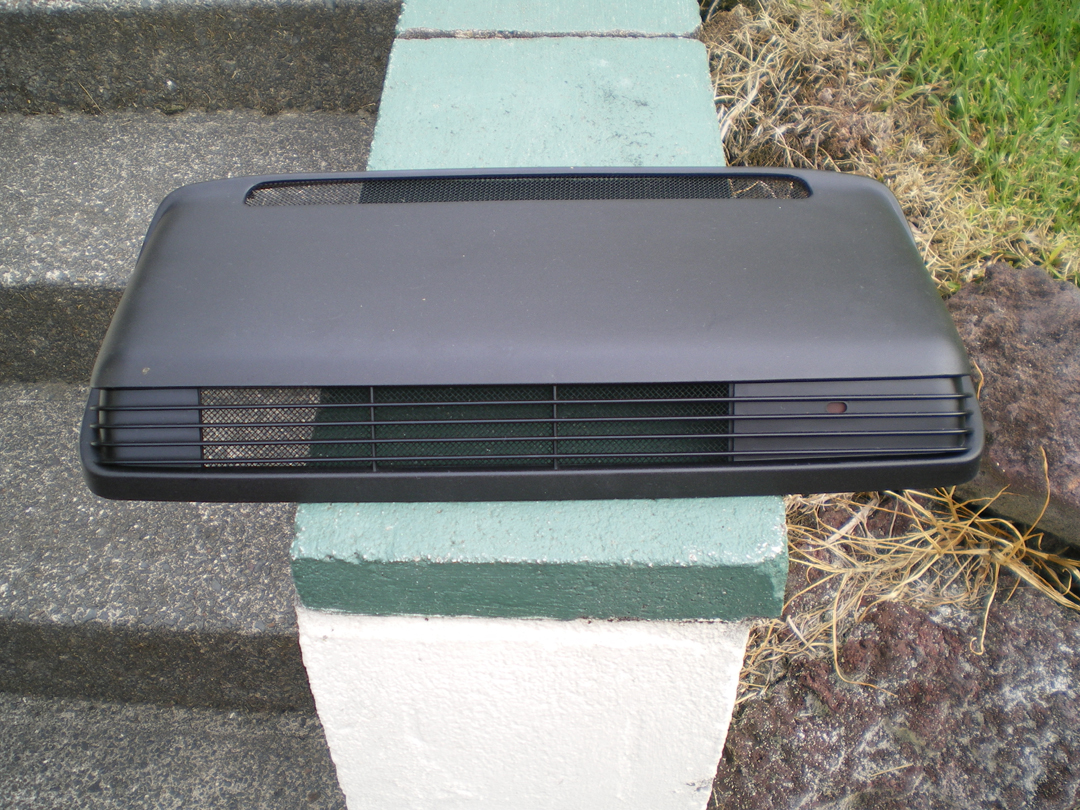

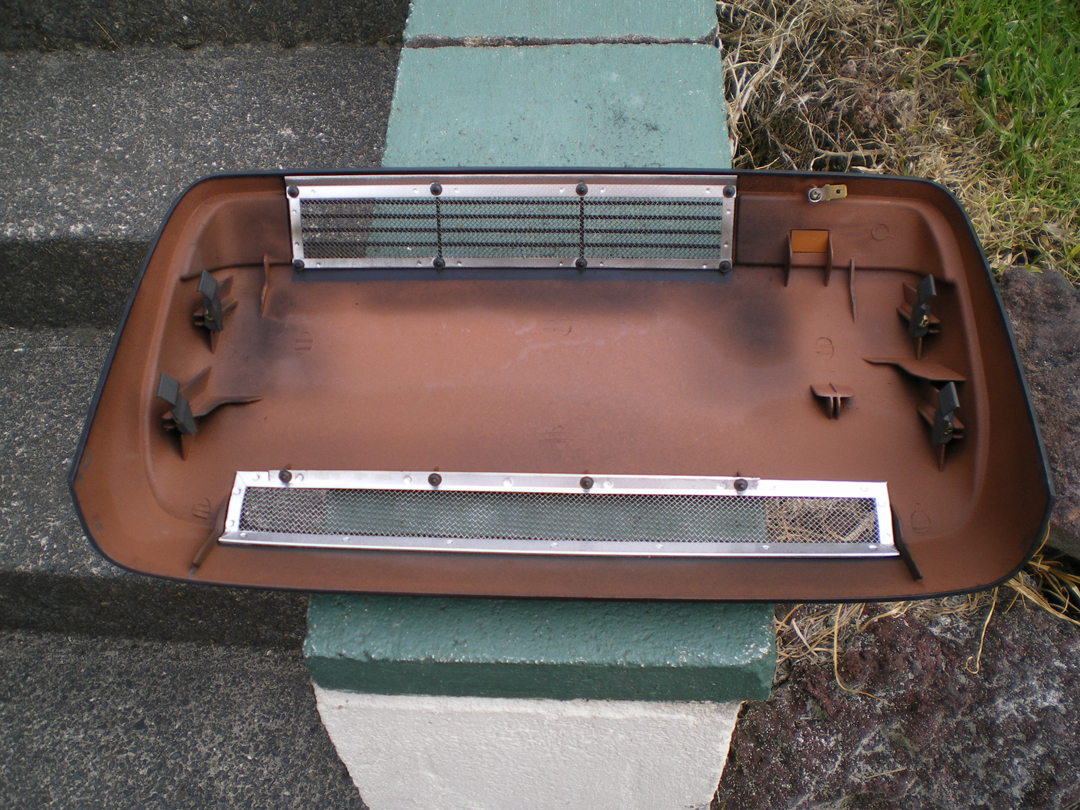

Cover Cover with indicator showing Indicator Inside cover - showing copper coating - RF & EMC shielding in order that High Voltage transformer (ioniser) will not affect the antenna pickup for radio. Indicator is just below screw QC type connector & the little piece of plastic is the HV disable plunger. Metal plates - these are the high volts parts (2Kv +) - replace lamp with LED, also notice micro switch that fits in with previous photo - disable HV when cover is off. Charcoal filter is just behind the plates & also a fan behind that. Last edited by SURTEESS; 04-28-2010 at 09:01 PM.
|
|
#2
04-26-2010, 07:05 PM
|
||||
|
||||
|
Re: Rear Deck Blower

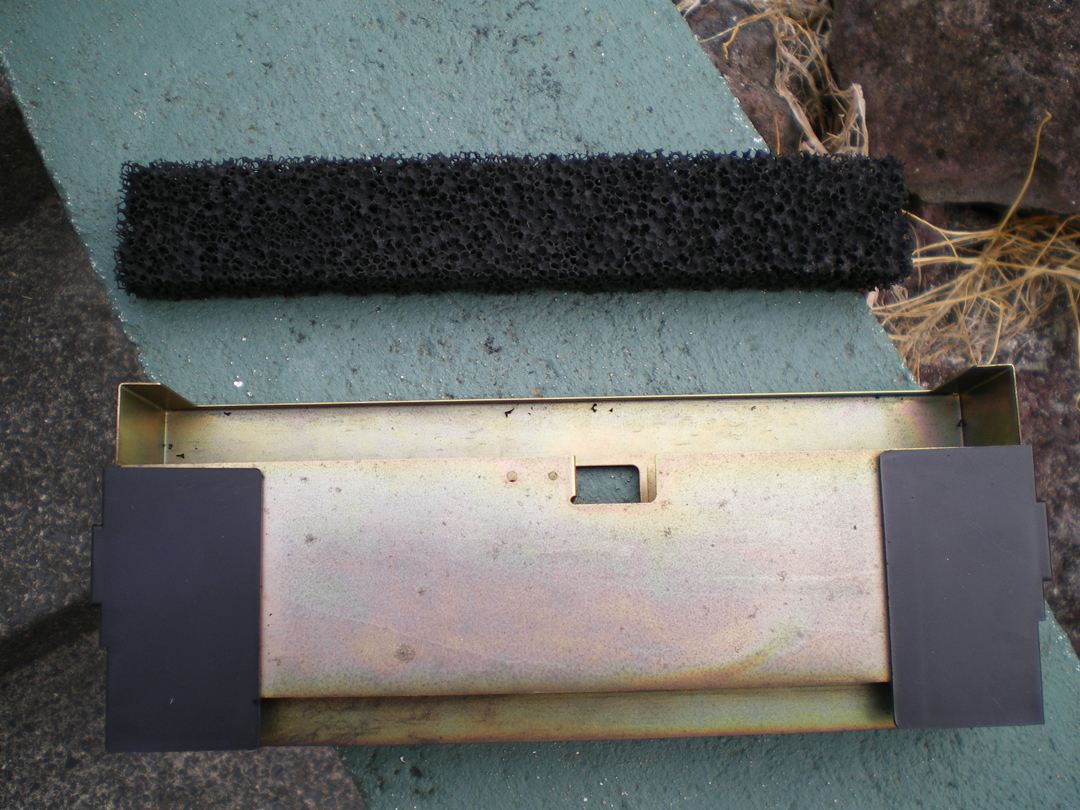

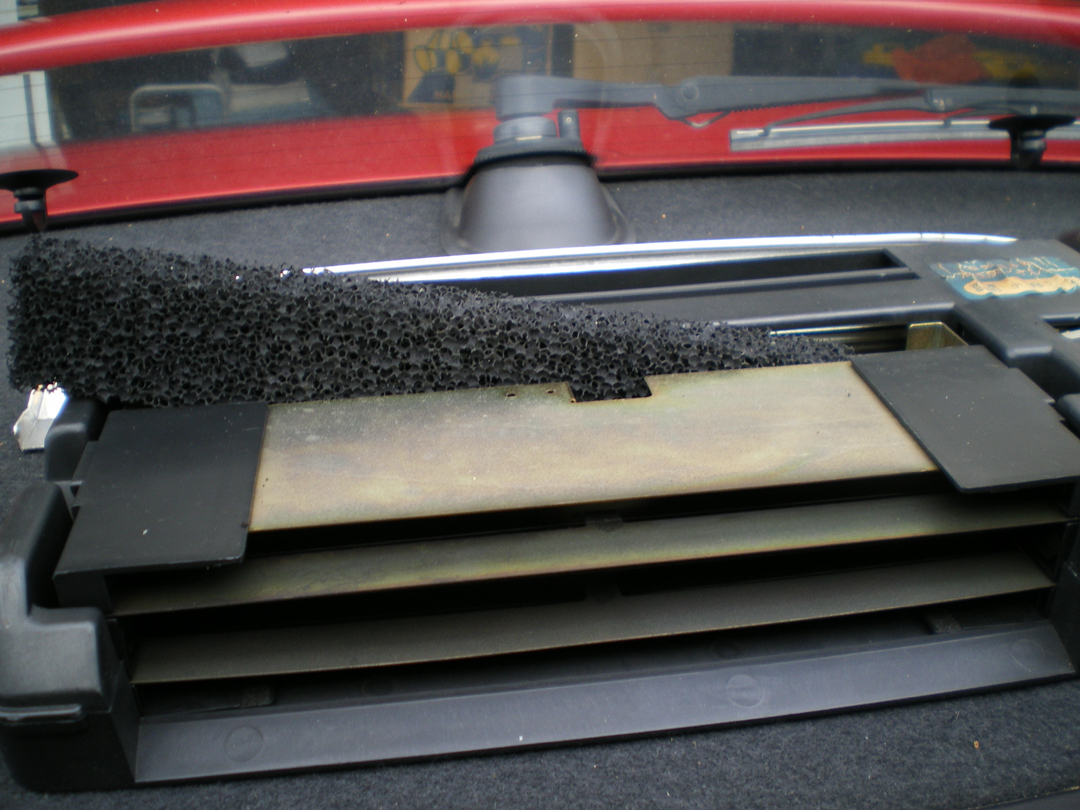

Charcoal filter being removed - cutout in the gold pasivated metalwork is to get fingers on each side of filter for easy removal.

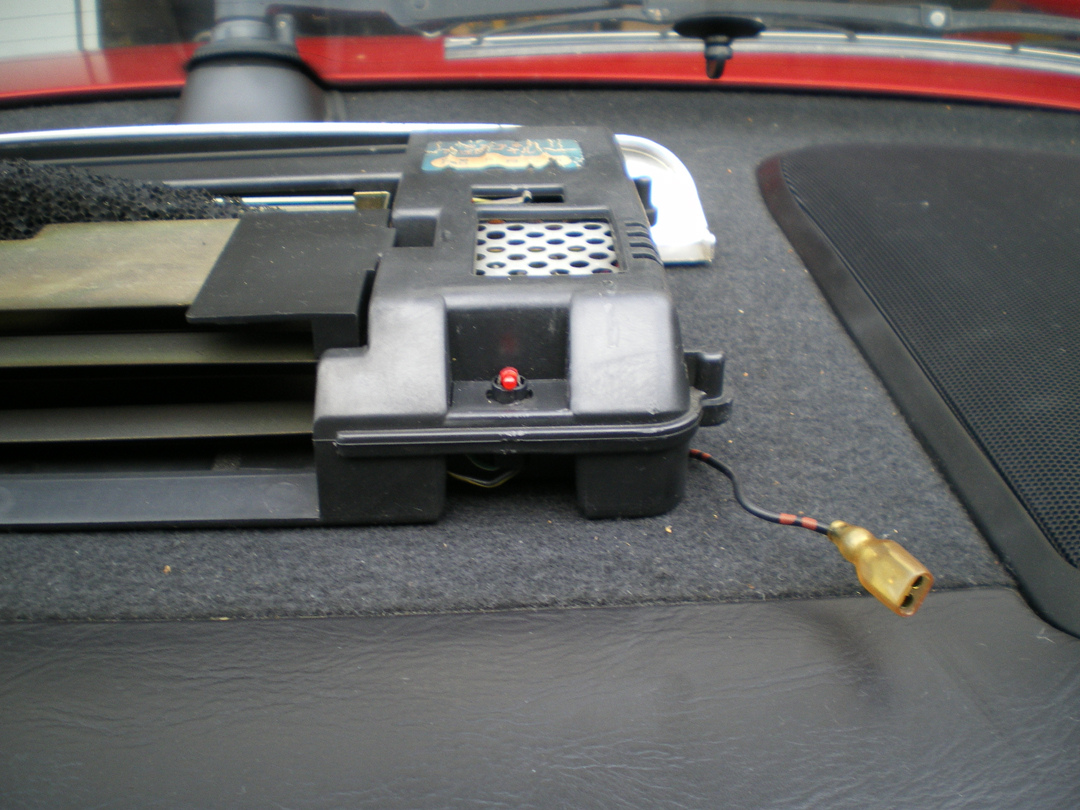

LED indicator (added current limiting resistor) - also shows earth connector to case lid. HV ioniser plates removed (along with charcoal filter) - showing blower fan. HV plates & charcoal filter out of unit HV plates & charcoal filter apart.
|
|
#3
04-26-2010, 07:20 PM
|
||||
|
||||
|
Re: Rear Deck Blower

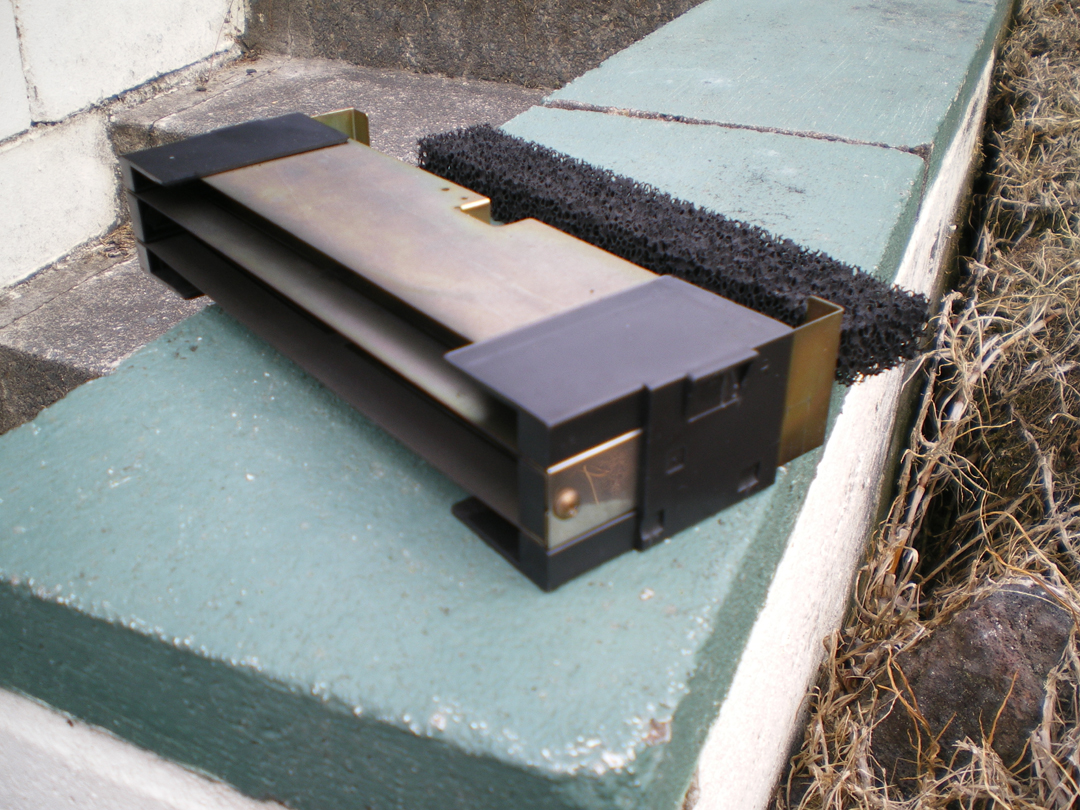

Another with HV plates & filter apart

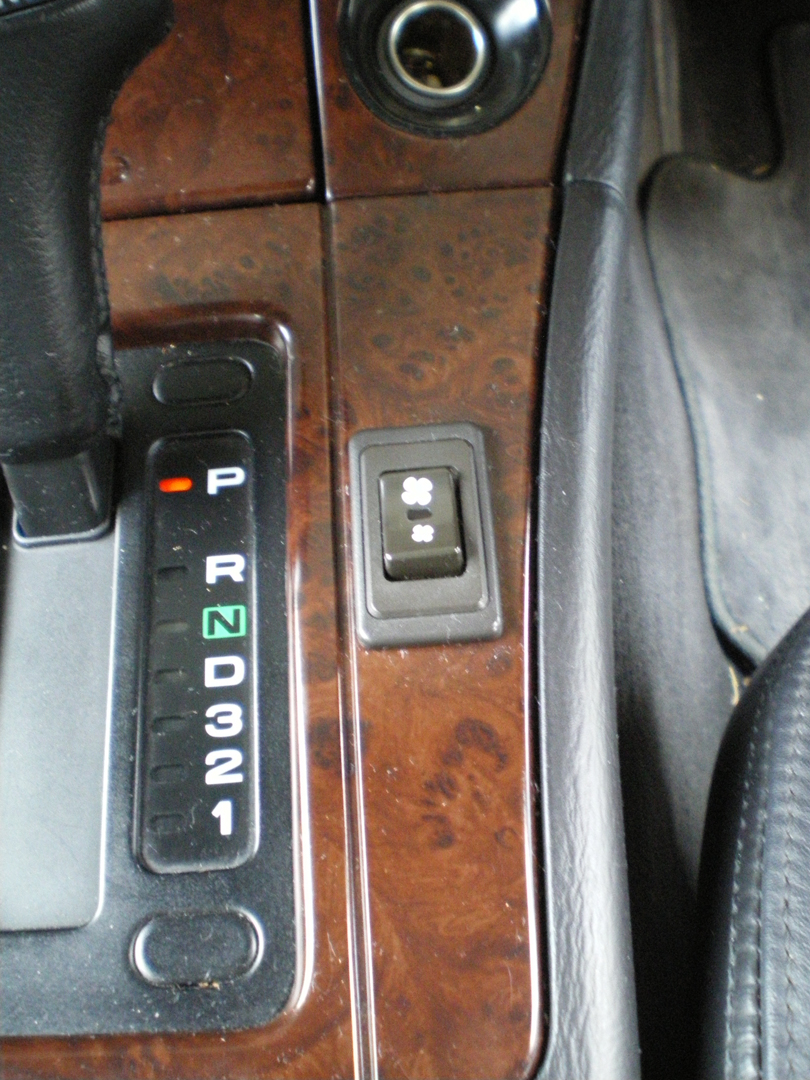

Another - outside plates are joined (to form a shield) inner plates are also joined, these are the HV ones!! Control switch - small fan indicator, fan is on LOW SPEED (no ioniser). large fan indicator, only operates when dashboard fan operates this HIGH SPEED operates for approx 7 minutes before turning off ioniser automatically - but leaving high speed on. I have replaced the indicator lamp with a green led & resistor - it only comes on when switch is not in middle (off) position. Another shot of switch Power is derived by t-junction from fan relay area under clovebox, remove original white connector - see next photo. Then Connect T-junction & then place original wiring into other side of T. Last edited by SURTEESS; 04-27-2010 at 12:02 PM.
|
|
#4
04-26-2010, 07:27 PM
|
||||
|
||||
Re: Rear Deck Blower
original connector now connected to other side of T-junction connector.

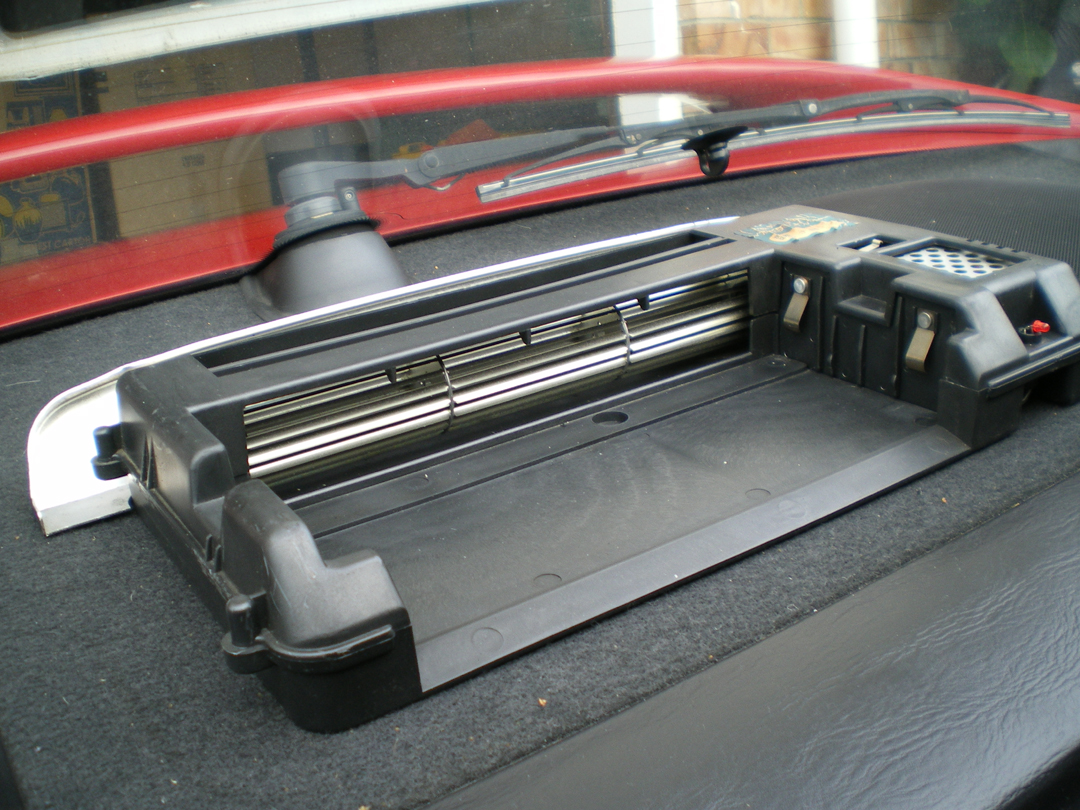

The control timing module fits inside the rear window lining area - there are posts in all the SVXs that I have seen here in NZ for mounting it - I have the wiring diagram in a box somewhere...... in order to fit the rear blower, see the "how to" area about "rear speaker removal", then add remove carpet to place wiring under the plastic cover tube that sits on the floor (where the computers are). Takes about 3 hours to fit, very simple really. The unit here was bought from a guy here in Auckland who has been wrecking 3/4 JDMs SVXs over the past couple of years (see some of my other postings for his email address - Peter is happy to post overseas) - the unit cost me NZ$100 (for everything - unit, switch, wiring, mounting screws etc).
|
|
#5
04-27-2010, 01:54 AM
|
||||
|
||||
|
Re: Rear Deck Blower
Nice write up.
I remember there was a Japanese owner on here a few years ago asking how to fix this unit. But at the time nobody knew anything about it. I remember talking to a guy at an SVX meet. He had one in his car but he thought it was for demisting the rear screen. He thought the dealer must have fitted it backwards, blowing into the car instead of at the screen.
